Kaiser RSD Copy Stand

Article number: KA-5600
Availability: In stock (2)
Delivery time: Ships in 1-3 business days.

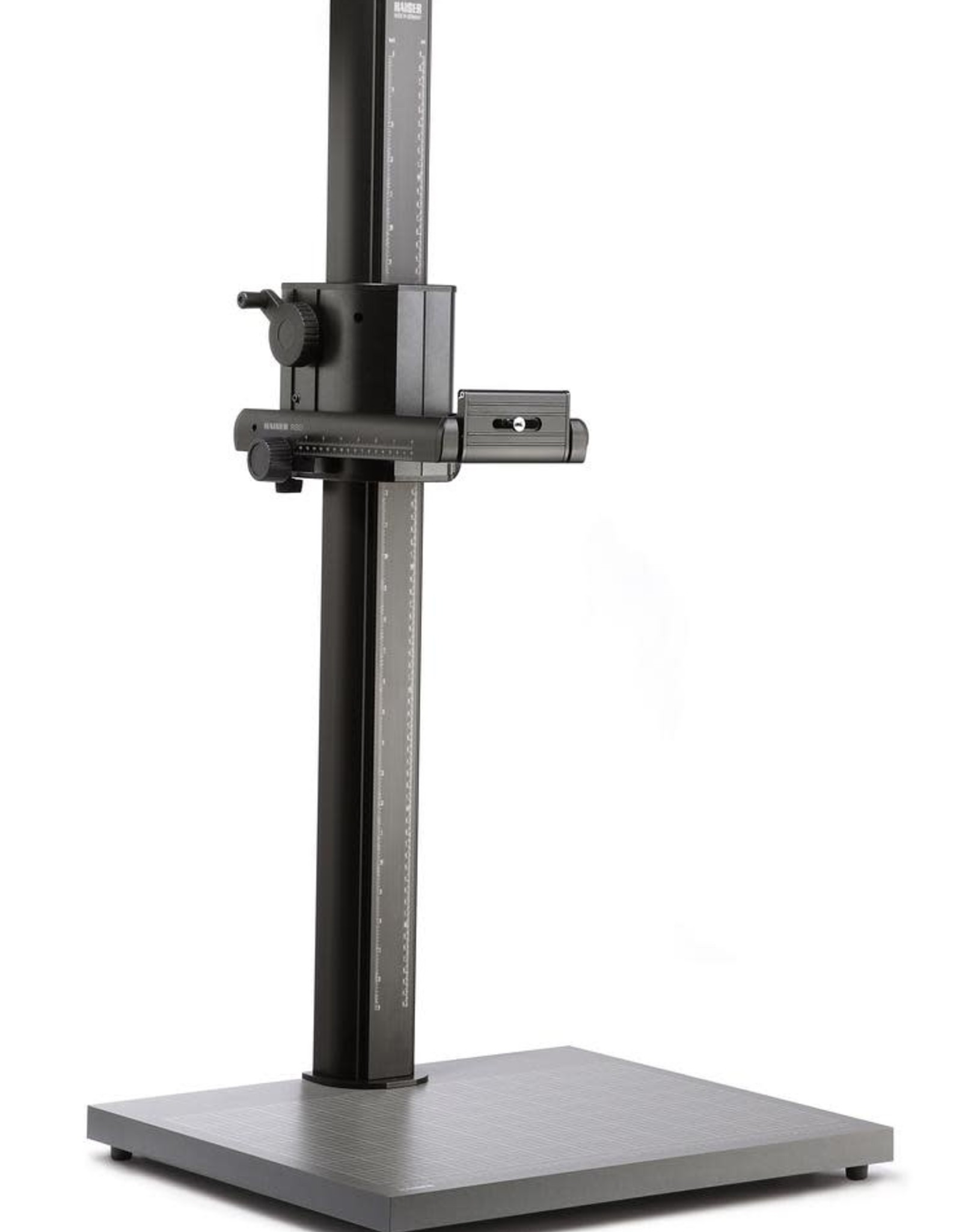

Kaiser RSD Copy Stand

A copy stand with the column made of special aluminum multi-section tubing, matt black anodized, and with cm and inch scales. The camera carrier, made of aluminum section, can be horizontally adjusted over approx. 16cm (6.3 in.) with rack-and-pinion parallel guides. Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position. Available with optional motorized column.

  • Camera mounting plate tilt-able by ± 90°.
  • Connecting screw horizontally adjustable.
  • Large non-reflecting matt grey base plate with printed grid, cm and inch scales.
  • Feet adjustable in height.
  • Spirit level.
  • Base plate: 680x38x570mm (26.8x1.5x22.4")
  • Column cross section: 105x74 mm (4.1x2.9")
  • Loading capacity: 8kg (17.6lbs.)
  • Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
  • Reversing mounting thread: 1/4” / 3/8” changeable
  • Height of column: 1.20m (3'9"), or 1.8m (5'9")

Motorized columns with ESA/CSA compliant power supply meeting the Canadian workplace safety standards. ESA sticker included.


Not in stock? Contact us to order: 416-628-8044 or [email protected]

Download RSD Comparison Chart
