Kaiser - RSP autoDrive 1.5 meter column with positioning control rePRO system.

Contact us to order: 416-628-8044 or [email protected]

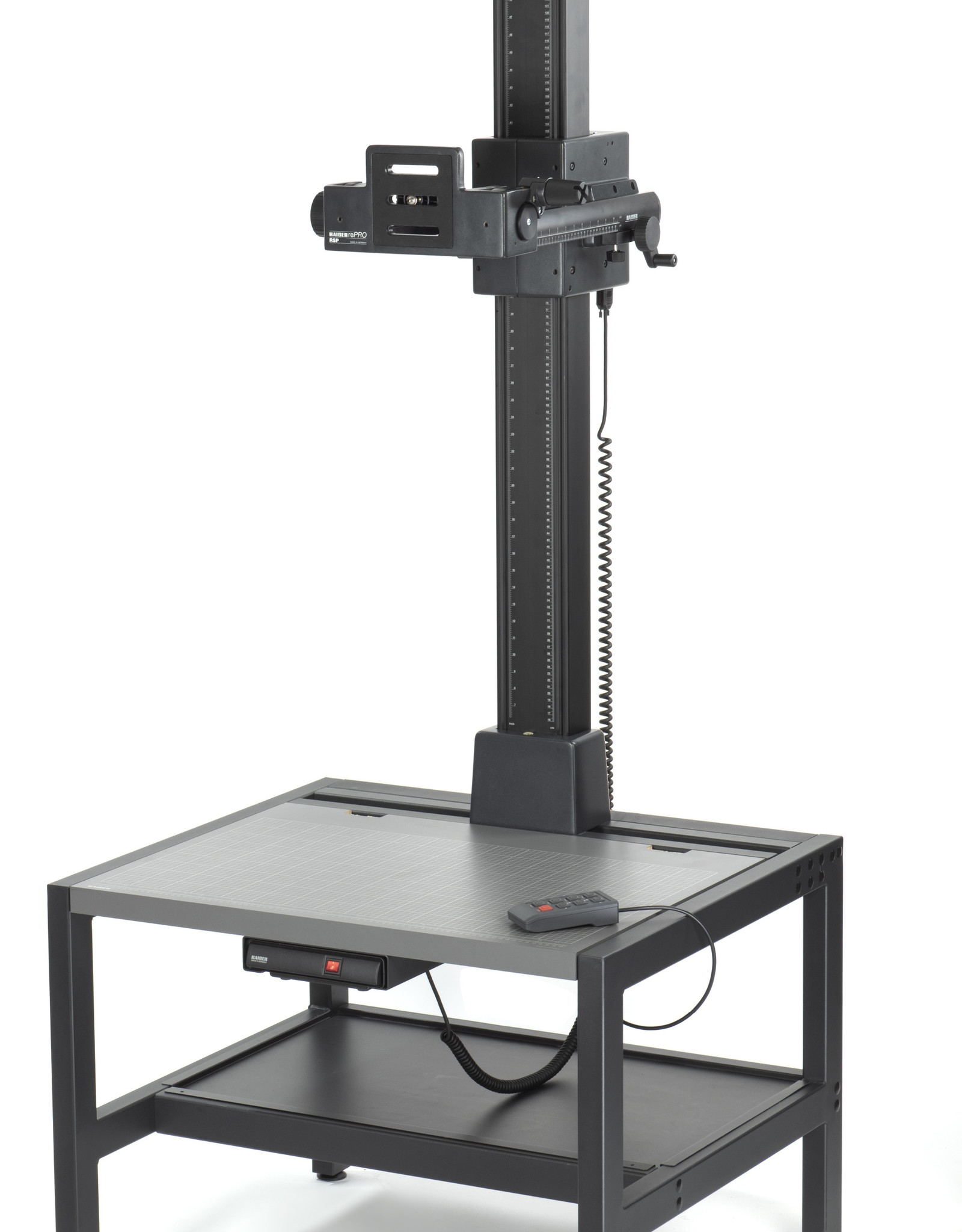

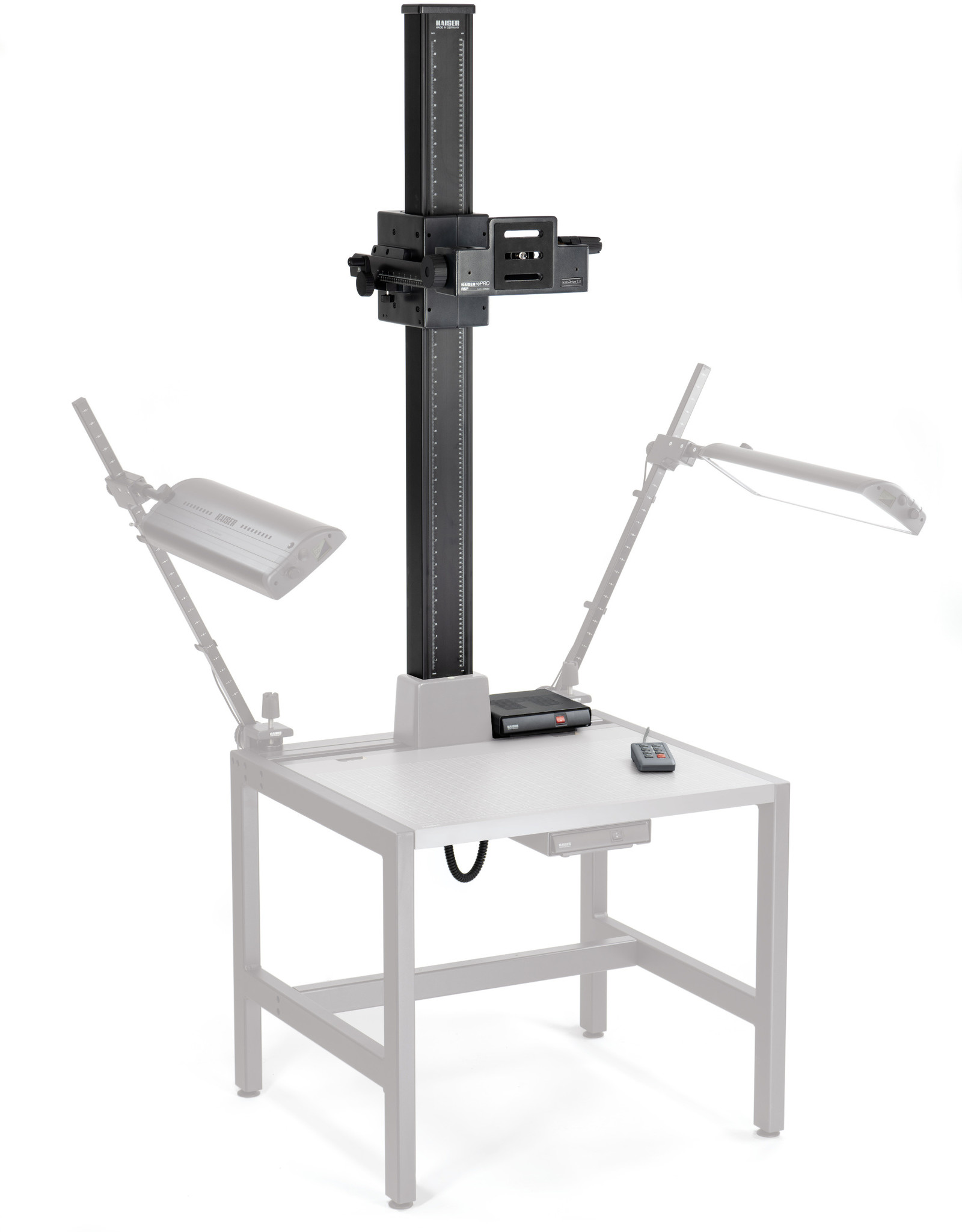

Kaiser RSP autoDrive 1.5 meter column with positioning control rePRO system.

The RSP Column for the professional rePRO copy system is equipped with a motorized height adjustment Camera Carrier (via laptop or cable remote control). Height positions can be stored and retrieved with approx. 1/100mm repeat accuracy.

• Column height: 150cm (59.1")
• Cross-section: 12x8cm (4.7"x 3.1")
• Height adjustment: motorized/computerized
• Maximum load: approx. 15kg (33lbs.)
• Mounting thread: 1/4” / 3/8” exchangeable
• Supplied with "Kaiser autoDrive" control program.

The RSP autoDrive column is made of matt black anodized multi-chamber special aluminum section, with printed cm and inch scales.

The Camera Carrier of the RSP is made of die-cast aluminum with motorized height adjustment via "Kaiser autoDrive" control program or cable remote control.

• Adjustment speed independent of load.
• Height position is exactly held via self-limiting worm-gear.
• Automatic limit stop by magnetic sensor.
• Camera carrier horizontally adjustable via specially shaped parallel guides with gear rack.
• Hand cranks for right/left-hand operation, two locking screws.
• Built-in spirit level.
• Camera mounting plate can be swivelled by ± 90° with high-precision fine adjustment.
• Minimum System Requirements: Win 2000, Win XP, Win 7, Win 8.1, Win 10. Internet Explorer Version >= 5.0

Scope of delivery: Column with camera carrier, control unit, cable remote control, various connection cables, mounting accessories, control program (on USB stick).

Attaches to rePRO Table Frame (KA-5615), with rePRO Wall Mount (KA-5614) or in Base (KA-5610)

*Over-sized Shipping Fees Apply
