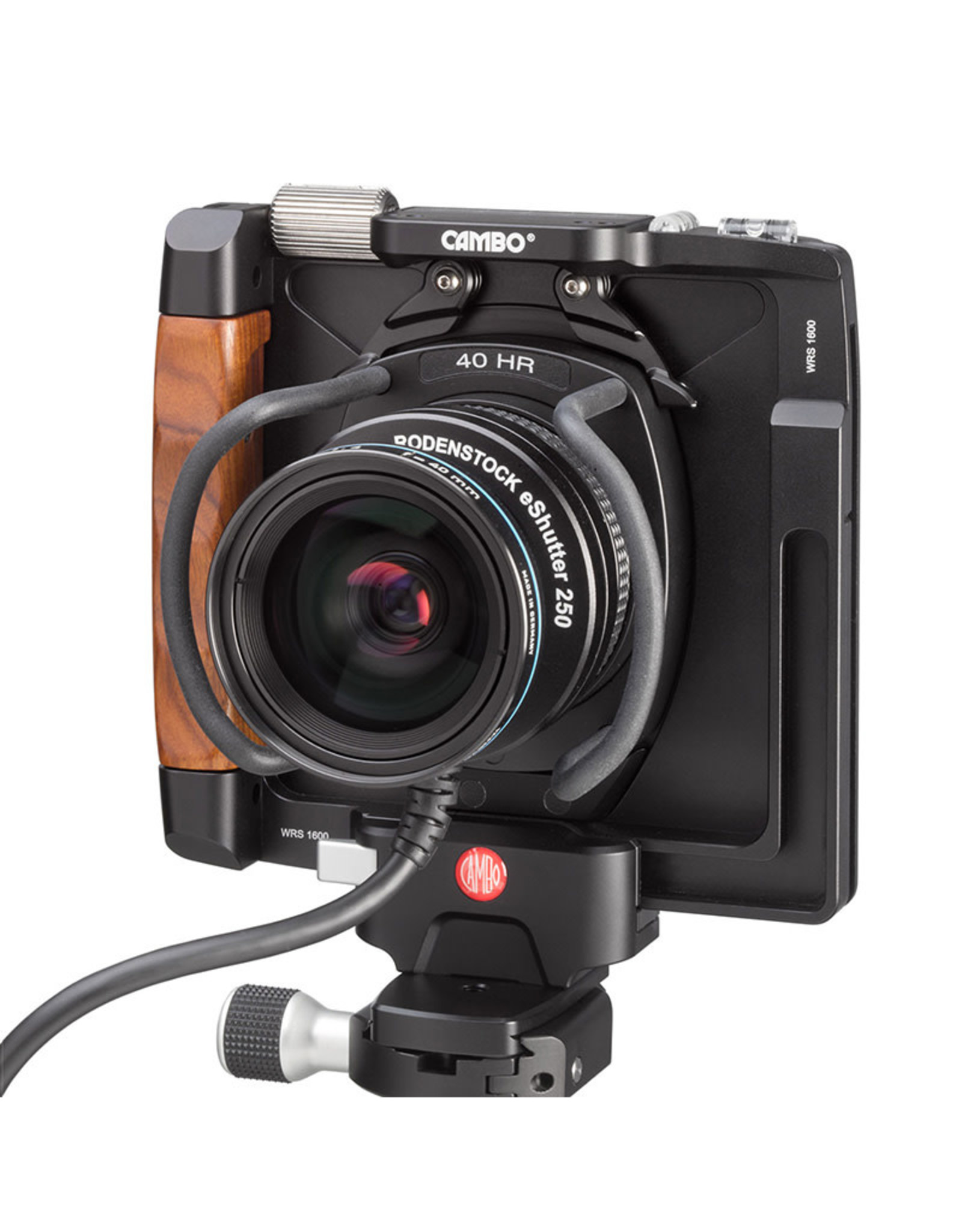

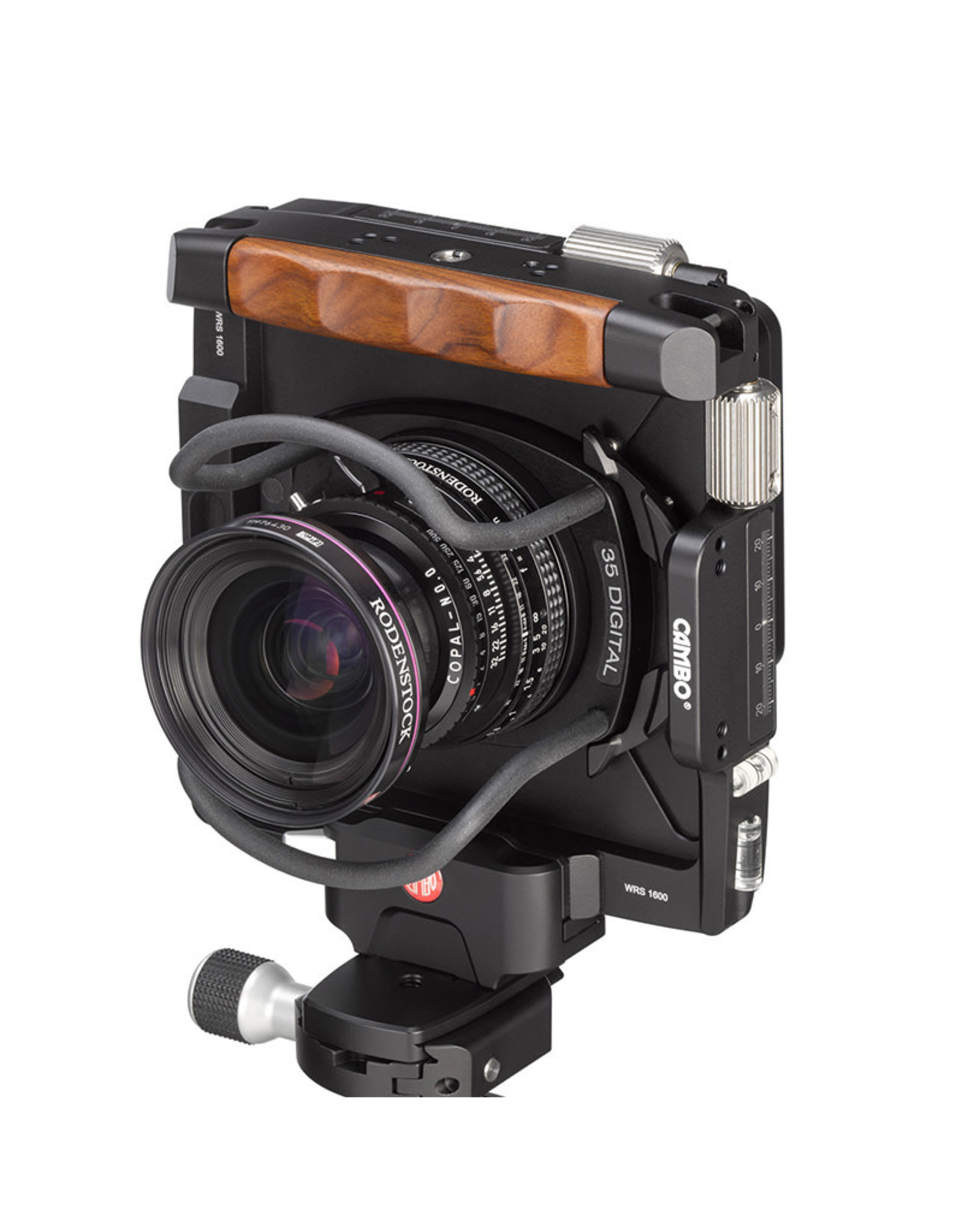

Cambo WRS-1600 Wide RS-Body Rotating, with double rear shift (20/20 - 20/20 mm). Includes softcase, 1 palissander handgrip, cable release, 3 spirit levels, Arca mounting base and LED light

C$5,060.00
Article number: 99162300
Availability: Out of stock
Delivery time: contact us to Order

Cambo WRS-1600 Wide RS-Body Rotating, with double rear shift (20/20 - 20/20 mm). Includes softcase, 1 palissander handgrip, cable release, 3 spirit levels, Arca mounting base and LED light

The Cambo WRS-1600 series is a new addition to the Wide RS Family, made from high grade aluminium as used in aerospace technology.

The movements are driven by accelerated spindle gears, operated by XL size stainless steel driveknobs.  These precision-geared controls provide architectural photographers with many of the image-placement movements required, while giving digital photographers the ability to create amazing vertical and horizontal panoramic images by stitching multiple exposures together.

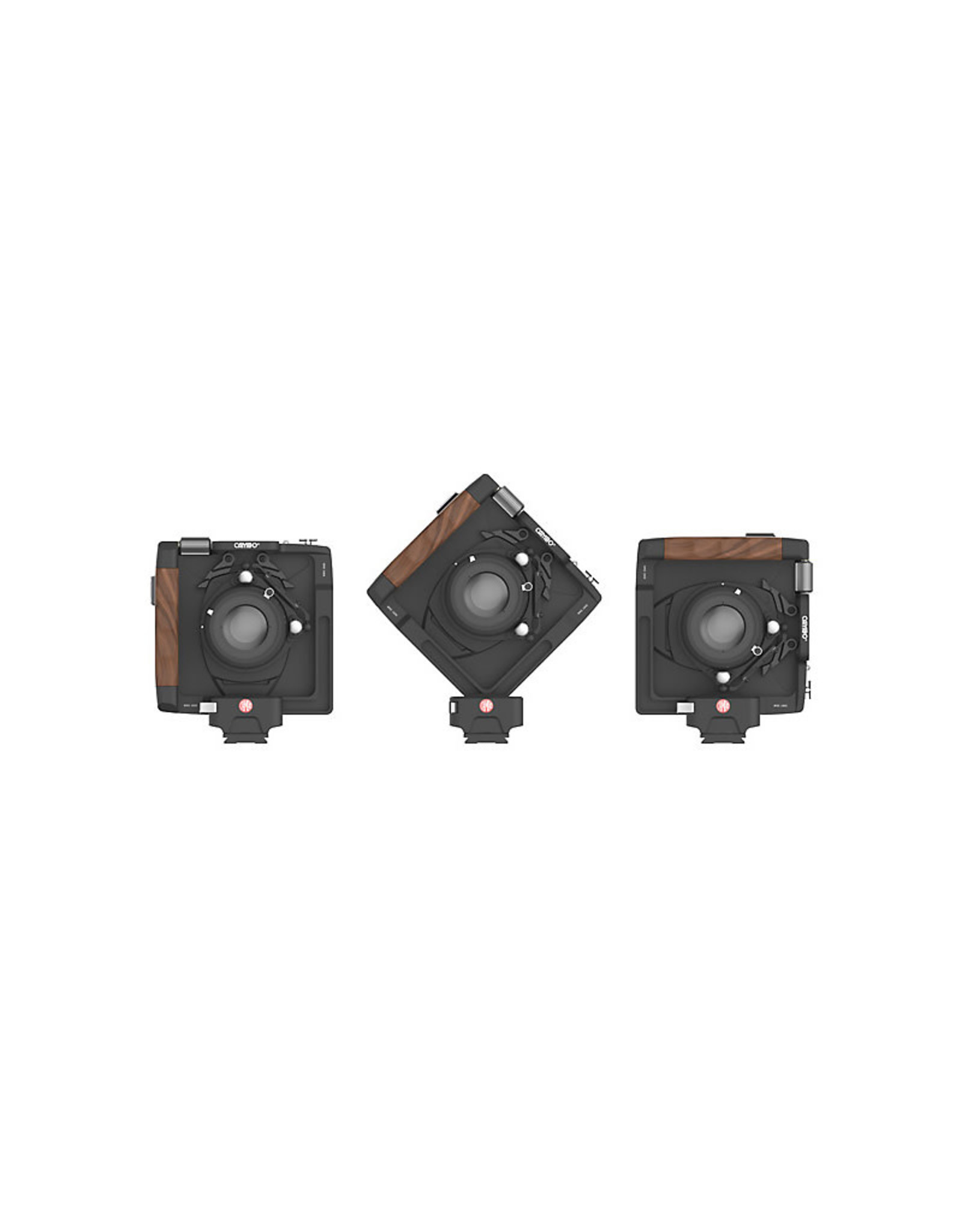

The  WRS-1600 has the unique ability to rotate the full camera/lens/back assembly in the tripod mount between landscape and portrait mode within seconds, without removing any part and still keeping the optical center in the same position.

Many of the Lenspanels can optionally be acquired with a Tilt-Swing possibility, to add Scheimpflug settings for increased depth of field, in both horizontal as vertical plane or intentionally selective sharpness where needed. The Wide RS accepts the full range of WDS lens panels that incorporate the Schneider Digitar and Rodenstock HR Digaron lenses. Choose from focal lengths ranging from 23mm up to 180mm and more to meet most architectural or landscape photography needs.

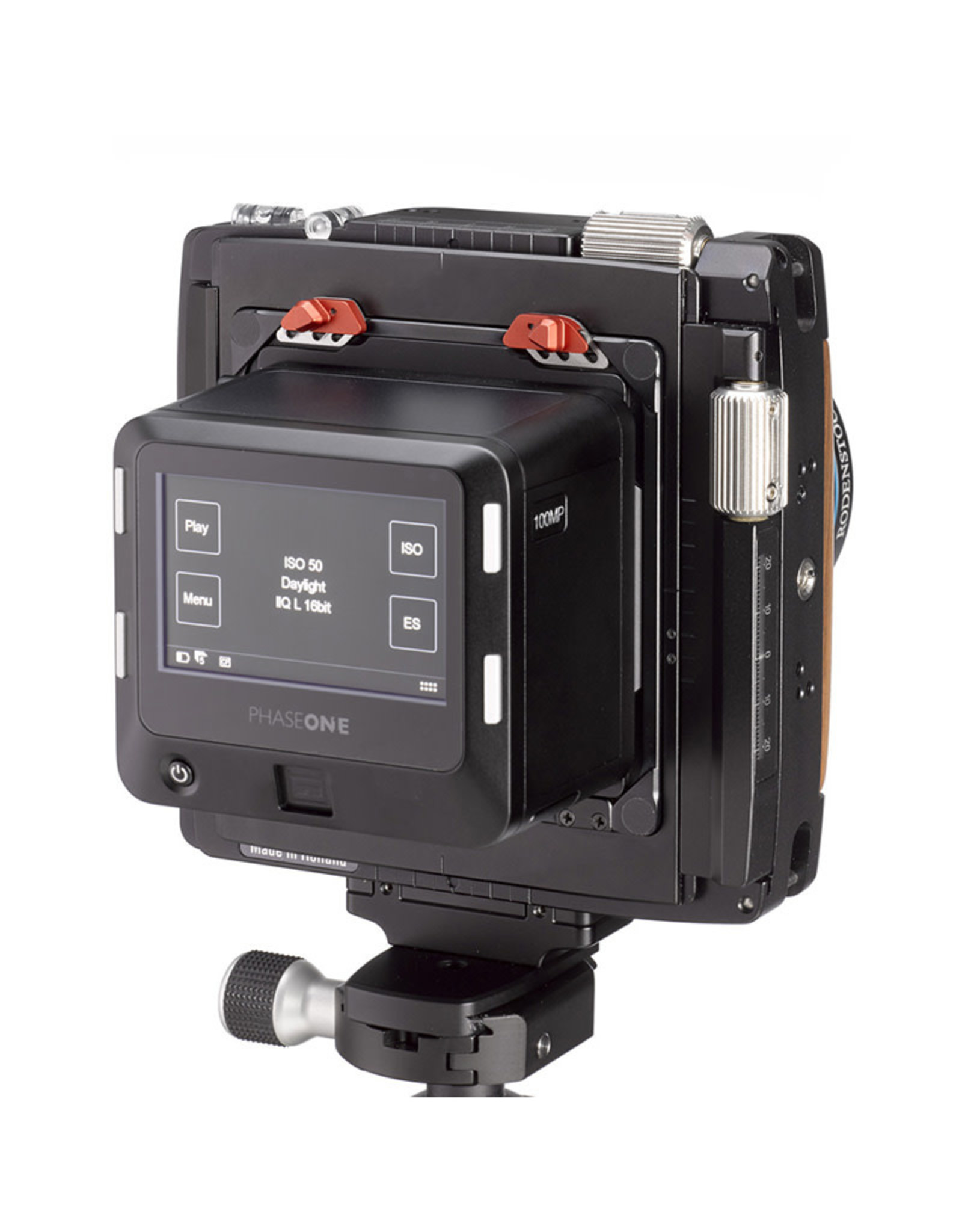

Like the other Cambo Wide models, the WRS-1600 features interchangeable interfaces for Hasselblad, Leaf, Phase One and Sinar digital backs. Mounts are available for Hasselblad V, Hasselblad-H, PhaseOneXF/Mamiya 645DF and Contax 645AF compatible camera backs. A dedicated interface plate hosting both Leaf AFi and Sinar HY6 backs is also available.
  • Size  180 x 160mm incl. handgrips and tripod mount
  • Lightweight only 0.92 kgs (excl. lens)
  • Horizontal shift 40 mm (20 mm left/20 mm right)
  • Vertical shift 40 mm (20mm / 20mm)
  • High grade aluminium body in black anodized finish
  • Wooden handgrip with cable release support
  • Handgrip made of Palissander wood
  • Stainless steel XL drive knobs for shifts and rise / fall
  • Fully compatible with Cambo’s WRS system
  • Stitching possibilities (2-way / 4-way)
  • Millimetre scales for movements
  • Movement indicators on rear sides
  • Removable cable release included
  • Integrated 1/4 - 3/8" tripod mount (Arca compatible)
  • 3 spirit levels
  • Accessory mount for 2 point fixed accessories
  • Additional LED light included
  • Optional WTS Tilt-Swing Lenspanels
  • Optional Viewfinder
  • Broad range of optics
  • Retrofitting of user lenses offered
