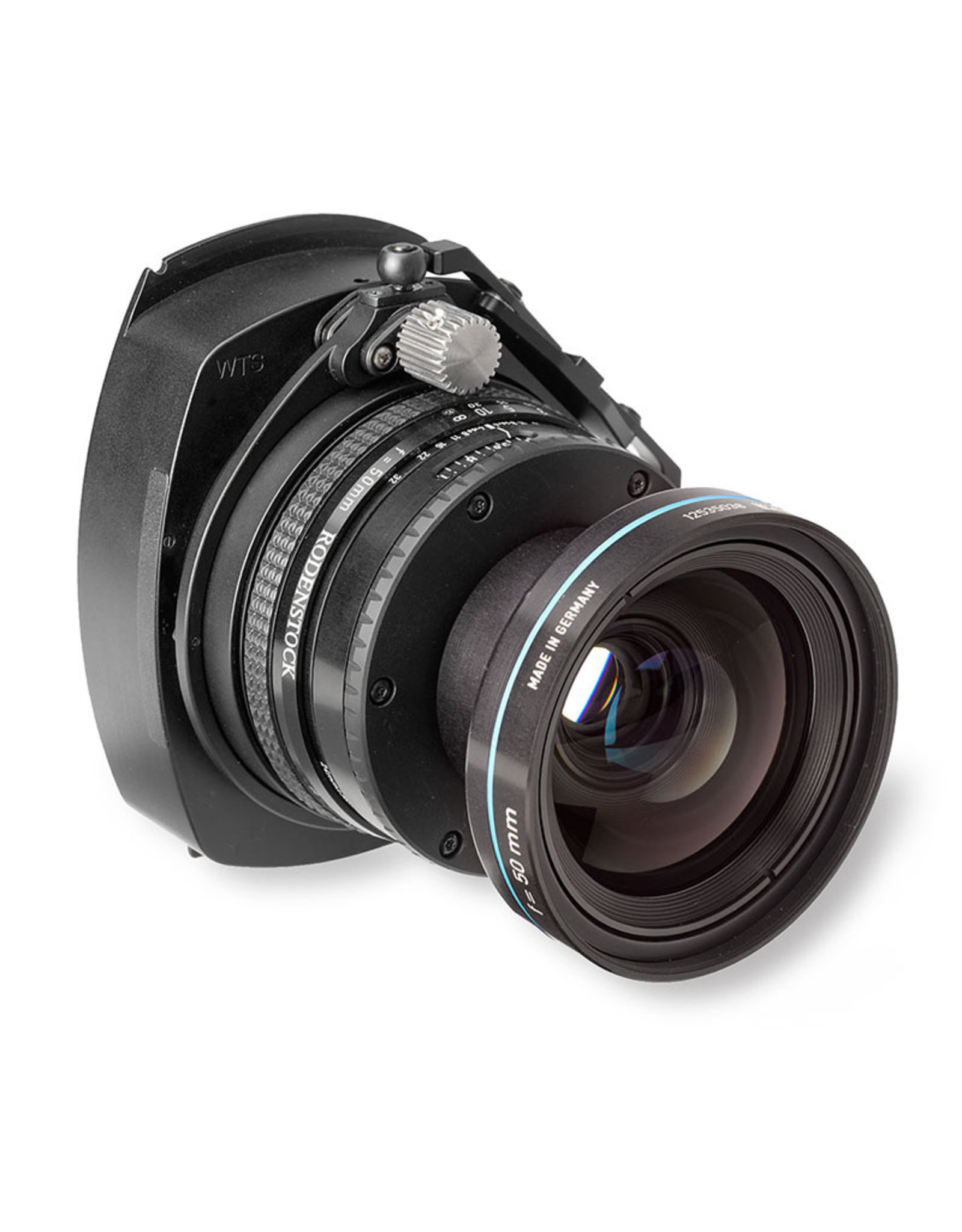

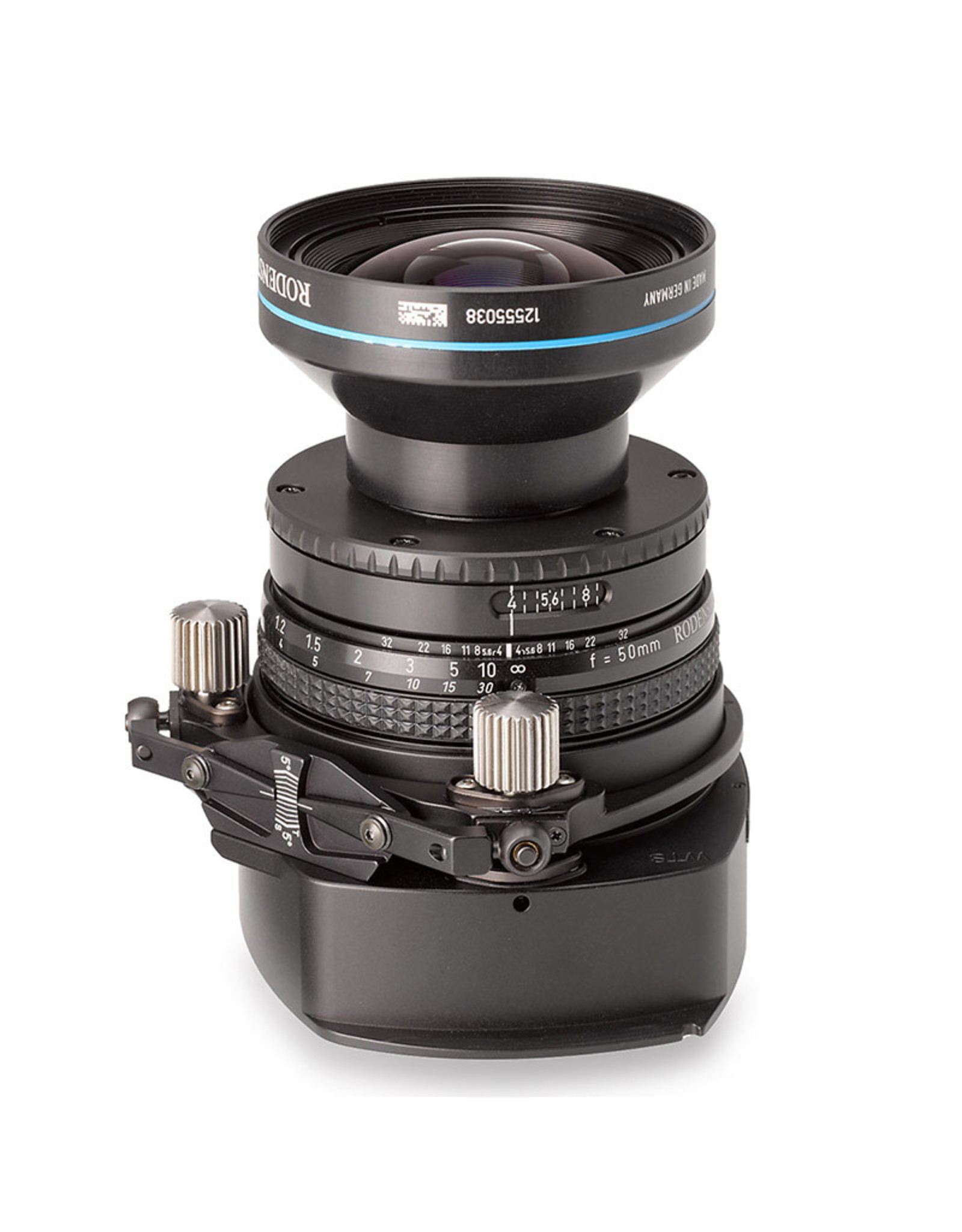

Cambo WTSA-850 Wide-T/S 50 mm HR Digaron-W Lenspanel with Aperture Stop body - NO SHUTTER (compatible with the PhaseOne XT Camera system)

C$15,130.00
Article number: 99162850
Availability: Out of stock
Delivery time: contact us to Order

Cambo WTSA-850 Wide-T/S 50 mm HR Digaron-W Lenspanel with Aperture Stop body - NO SHUTTER

The WTSA-850 Lenspanel is dedicated for use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 4.0/50 HR Digaron-W lens with Aperture Only mounted in a helical focussing mount.
This lenspanel features an integrated tilt and swing mechanism which can be operated with two precise gear-driven knobs up to 5 degrees Tilt up and down and 5 degrees Swing left and right, while both swing and tilt can be set independently, separately but also in combination.
The movements have a clear and forced zero position where the parallel setting to the focal plane is guaranteed.
  • Shortest focal distance to object: 0.55m
  • Image circle of lens at f/8: 90mm
  • Compatible with Phase One XT

Optical Movements:
  • CCD size 37x37mm: 23/23mm
  • CCD size 33x44mm: 23/20mm
  • CCD size 36x48mm: 20/17mm
  • CCD size 37x49mm: 19/17mm
  • CCD size 40x54mm: 16/13mm
  • CCD size 36x56mm: 17/13mm

Camera Movements:
  • WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
  • WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
  • 1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
