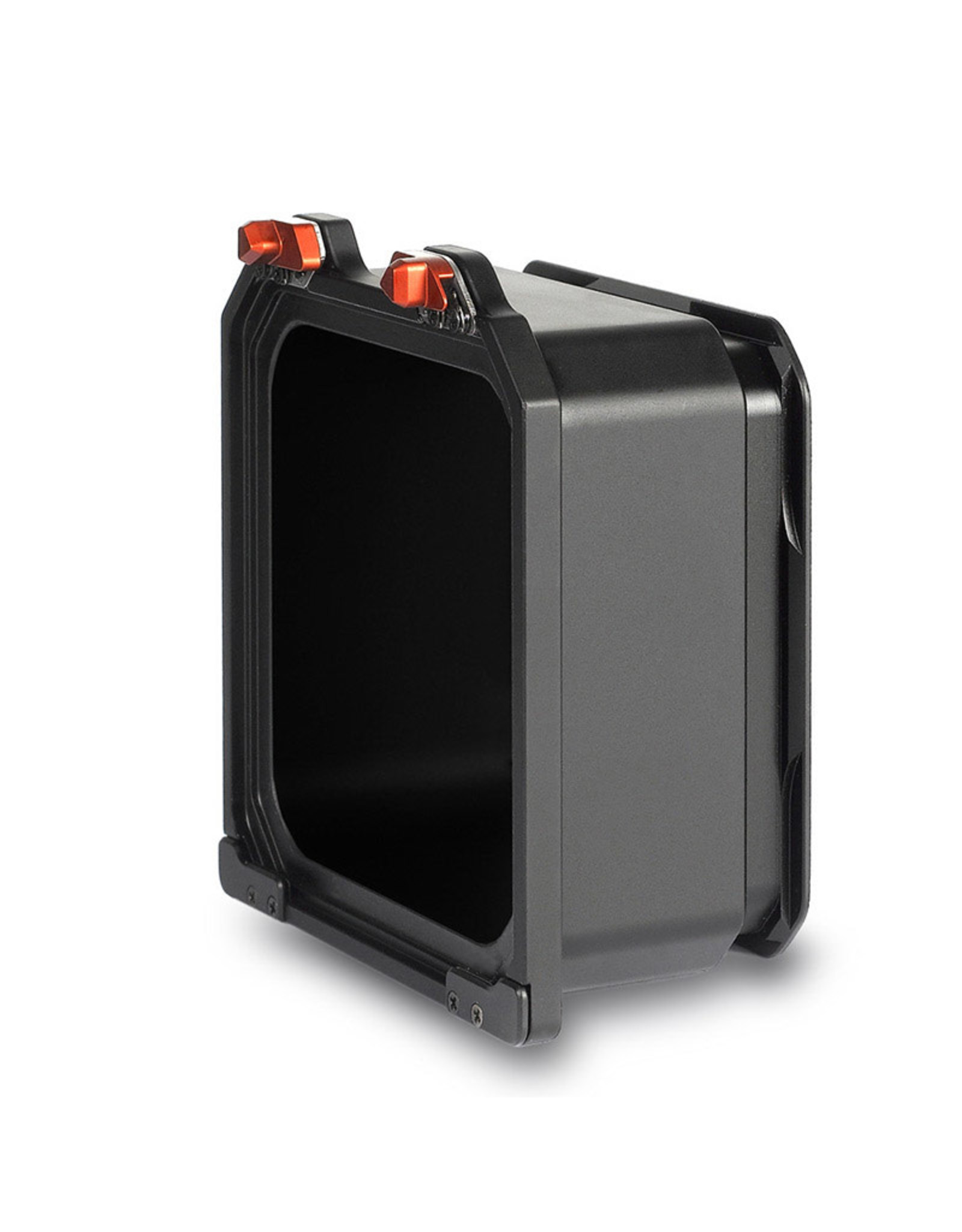

Cambo WRS Macro Adapter

C$940.00
Article number: 99162116
Availability: Out of stock
Delivery time: contact us for delivery time

Cambo WRS Macro Adapter

  • The WRS-1010  adds 10mm of extension to the default focussing range (for slight macro)
  • The WRS-1017  adds 17mm of extension to the default focussing range (for more macro)
  • The WRS-1048  adds 48mm of extension to the default focussing range (for extreme macro)
  • These adapters are stackable, so any extension can be achieved.
Samples of focussing range with a few lenses, based on the travel of the normal Rodenstock or Schneider helical focussing mounts, when adding the WRS-1010 macro-interface:
  •  50 mm focussing between 0.30 -- 0.21 mtr
  •  60 mm focussing between 0.42 -- 0.29 mtr
  •  70 mm focussing between 0.56 -- 0.38 mtr
  •  72 mm focussing between 0.64 -- 0.43 mtr
  •  80 mm focussing between 0.72 -- 0.48 mtr
  •  90 mm focussing between 0.90 -- 0.60 mtr
  • 100 mm focussing between 1.10 -- 0.73 mtr
  • 120 mm focussing between 1.56 -- 1.02 mtr



Samples of focussing range with a few lenses, based on the travel of the normal Rodenstock or Schneider helical focussing mounts, when adding the WRS-1017 macro-interface:
  •  50 mm focussing between 0.20 -- 0.16 mtr
  •  60 mm focussing between 0.27 -- 0.22 mtr
  •  70 mm focussing between 0.36 -- 0.28 mtr
  •  72 mm focussing between 0.41 -- 0.32 mtr
  •  80 mm focussing between 0.46 -- 0.36 mtr
  •  90 mm focussing between 0.57 -- 0.44 mtr
  • 100 mm focussing between 0.69 -- 0.53 mtr
  • 120 mm focussing between 0.97 -- 0.75 mtr



Samples of focussing range with a few lenses, based on the travel of the normal Rodenstock or Schneider helical focussing mounts, when adding the WRS-1048 macro-interface:
  •  50 mm focussing between 0.11 -- 0.10 mtr
  •  60 mm focussing between 0.14 -- 0.13 mtr
  •  70 mm focussing between 0.17 -- 0.16 mtr
  •  72 mm focussing between 0.19 -- 0.18 mtr
  •  80 mm focussing between 0.21 -- 0.20 mtr
  •  90 mm focussing between 0.26 -- 0.24 mtr
  • 100 mm focussing between 0.31 -- 0.29 mtr
  • 120 mm focussing between 0.42 -- 0.39 mtr
*Note that are individual differences between individual lenses which may result in a slight variation on above numbers.
