Kaiser RB 5270 DX, Copylizer Lighting Unit (replaces KA-5279)

Article number: KA-5278
Availability: Out of stock
Delivery time: contact us to Order

Kaiser RB 5270 DX, Copylizer Lighting Unit

Kaiser's new LED reflected light illuminating unit for Copylizer and exe.cutive LED Illumina Base Plate with two light banks for even and soft illumination.

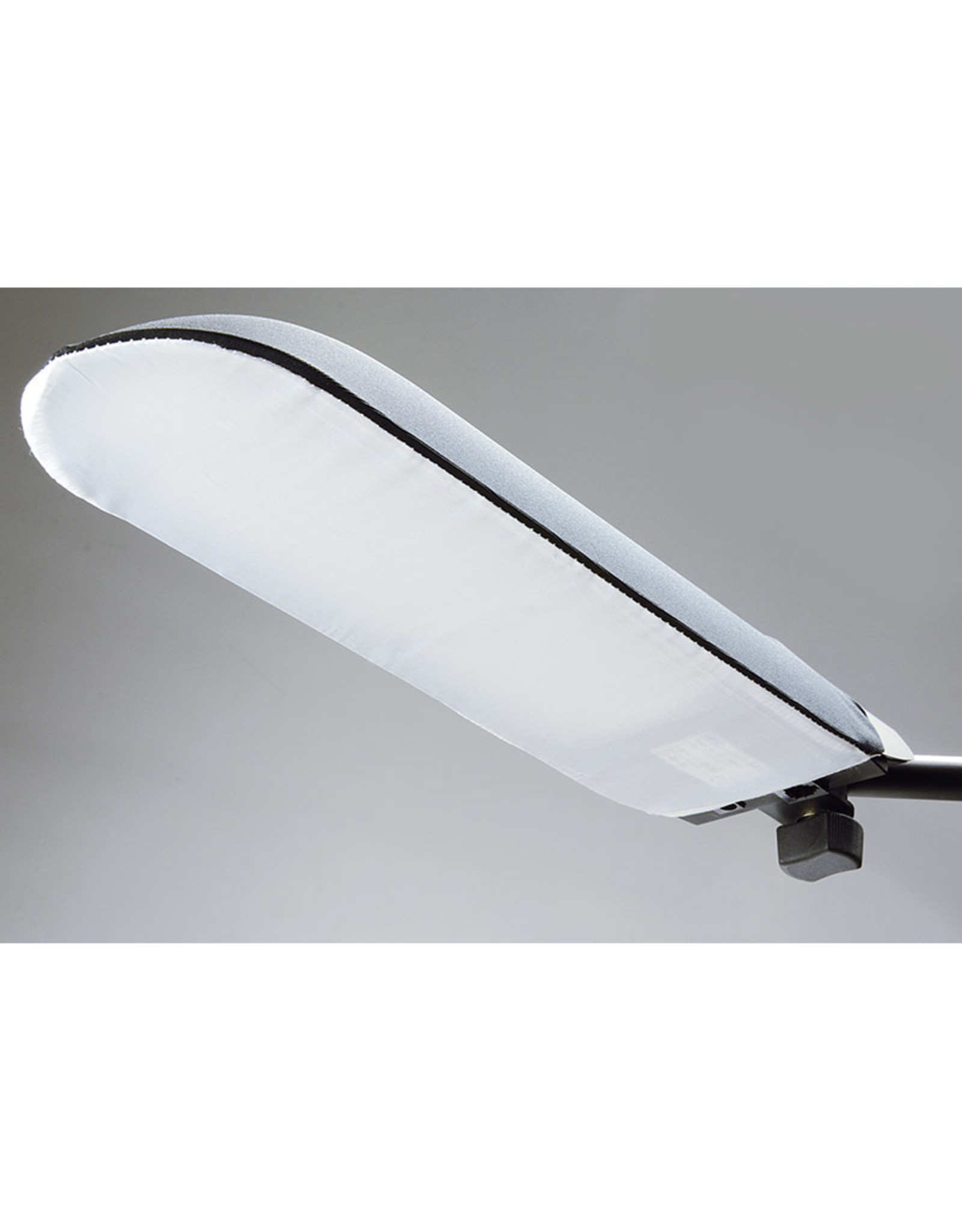

  • Each light is equipped with 161 selected white SMD LEDs. Emitted light has absolutely no IR and UV content while DC operation provides for flicker free light without residual ripple. Lights continuously dimmable, separately or in conjunction. Includes removable diffusing cover.

    Lights can be tilted, swiveled and adjusted in height.

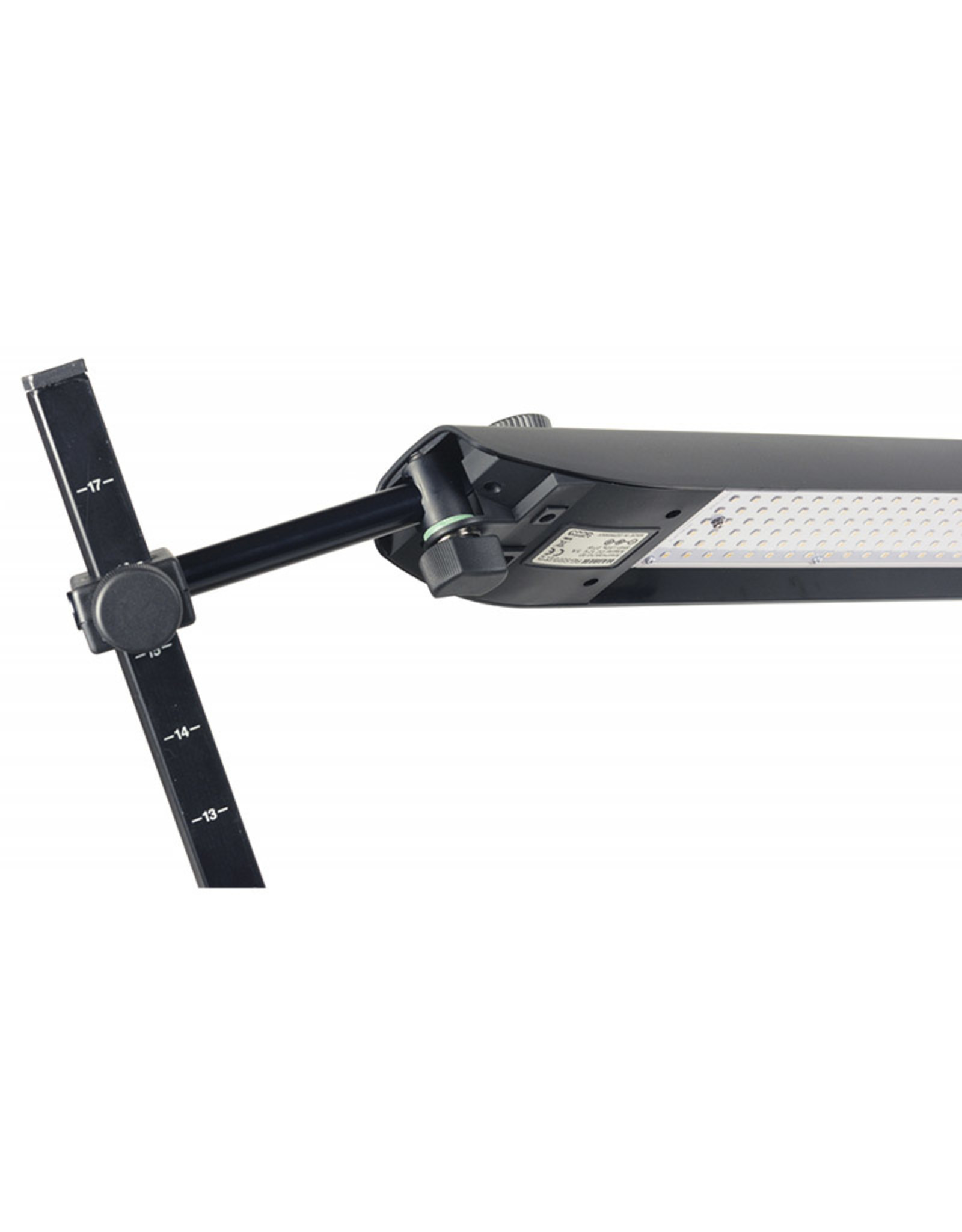

  • Vertical lamp arms have height markings, and are tilt-able with detents.

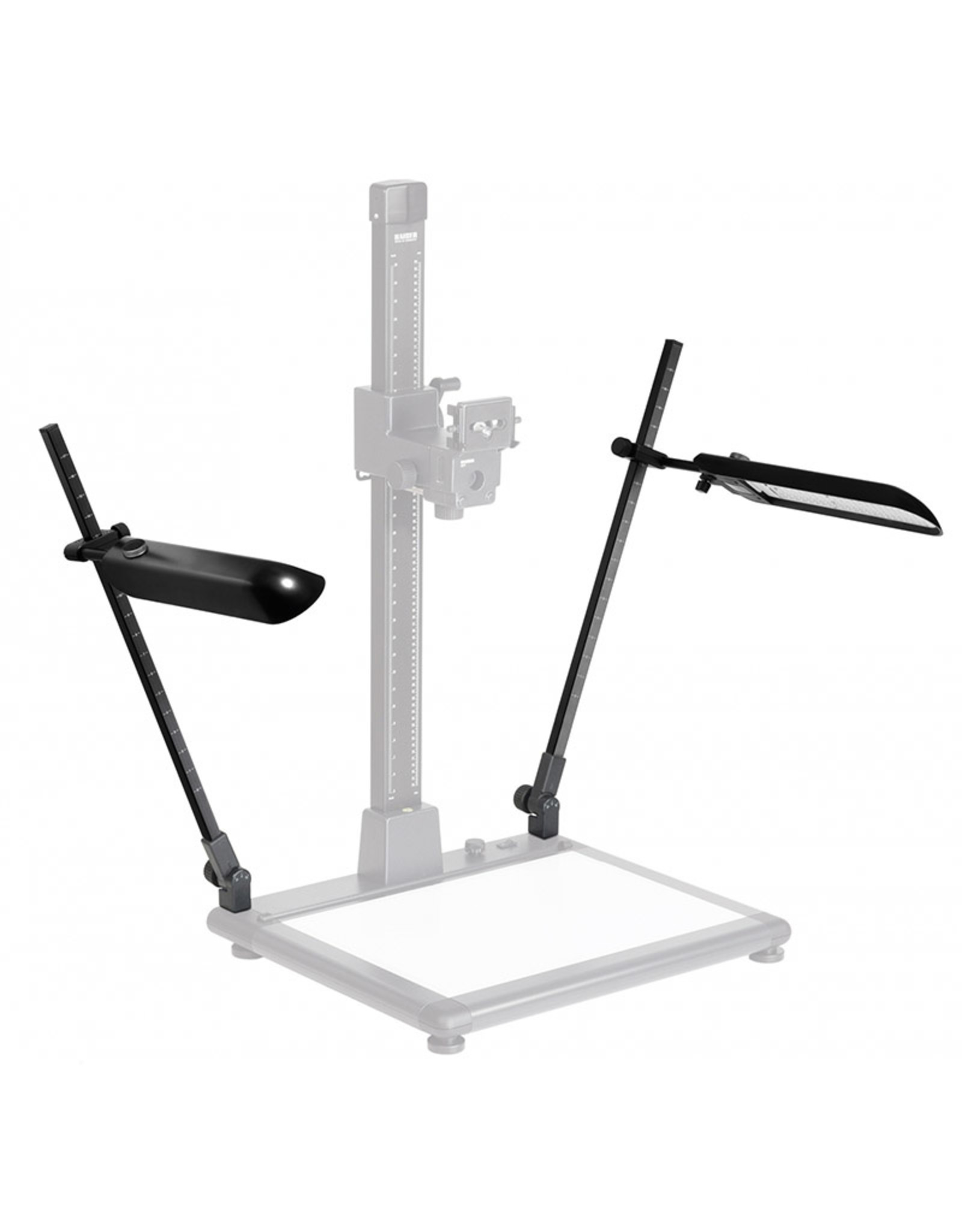

  • Attaches to Copylizer/Illumina Base Plate with articulated joint bases.
  • Comes with mains adapter.

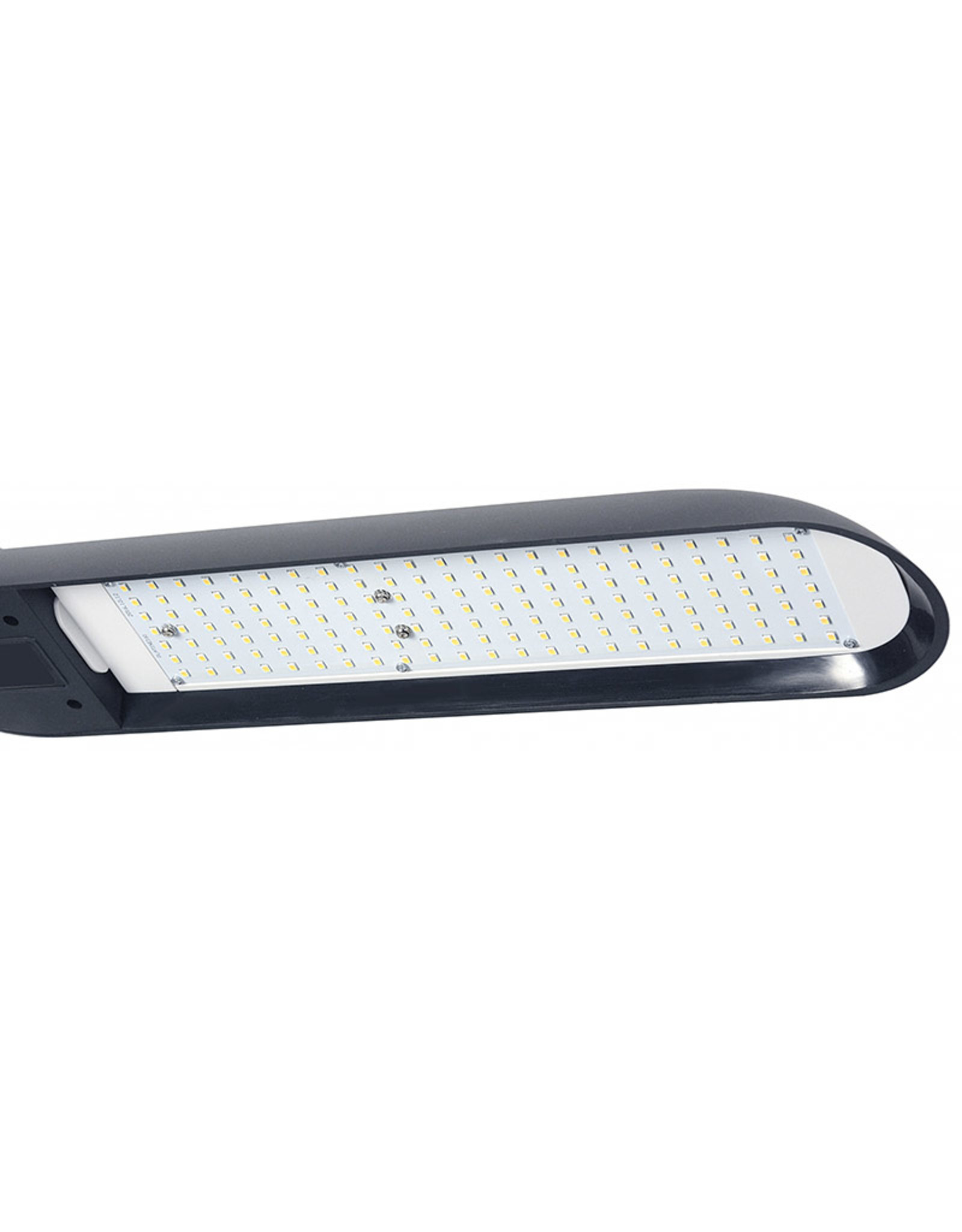

  • LED array: 2 x 161 SMD LED
  • Colour temperature: approx. 6000 K
  • Colour rendering index: CRI > 93
  • Angle of radiation: 110°
  • Max. illumination* w/o diffusing cover: 3000 lux, with diffusing cover: 2400 lu
  • Power consumption: 2 x 27 W
  • Operating voltage: 12 V
  • Light emitting area of one light: 33 x 8.5 cm (13 x 3.3 in.)

    *measured with highest possible evenness of illumination of a 16.5 x 11.5“ flat subject

The RB 5270 DX Copylizer Lighting Unit can also be attached as a reflected light illuminating set to the "TopTable PRO" Basic Support.
