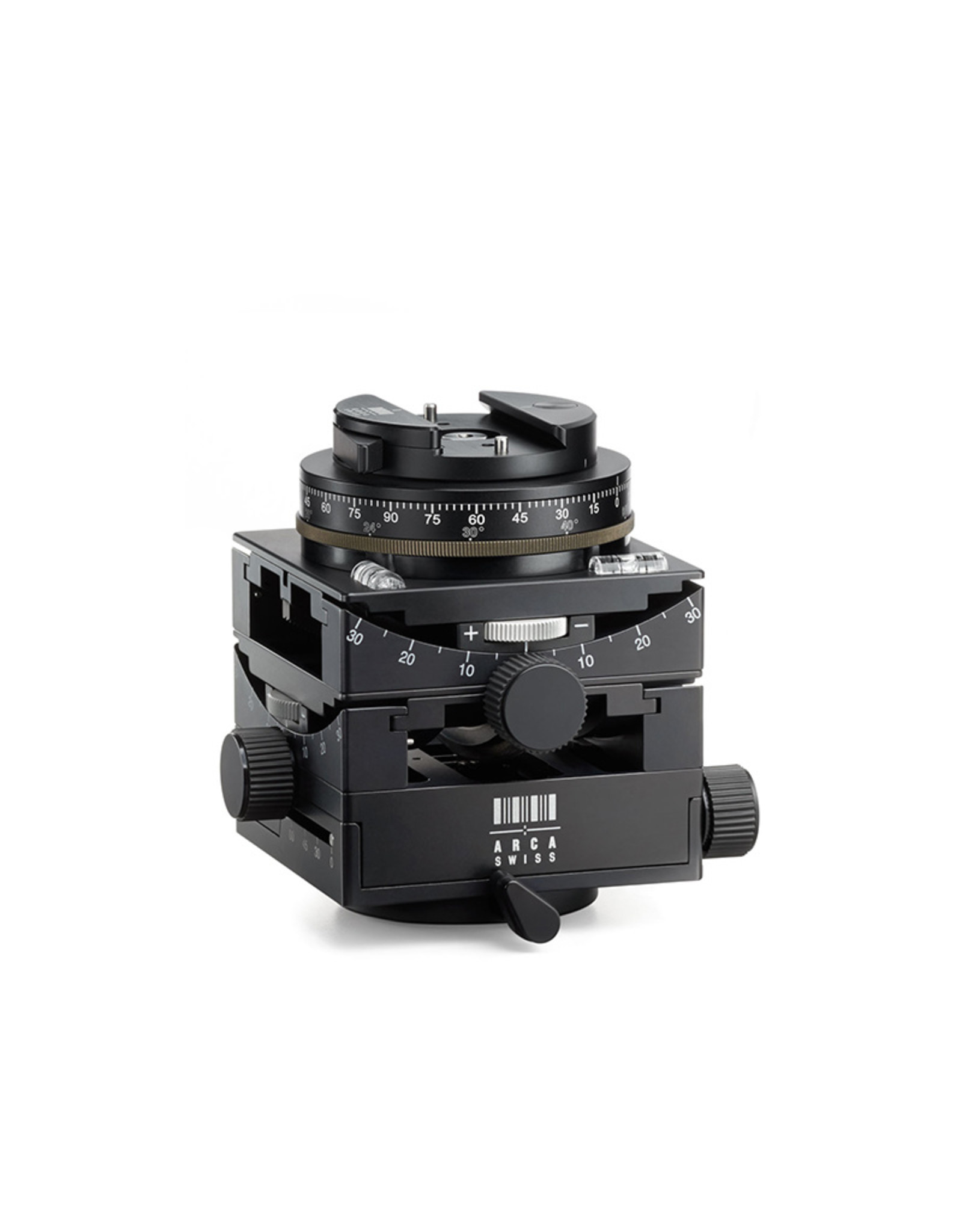

Arca Swiss C1 Cube cp (clicPan®)

The patent C1 Cube is the crown jewel of the Arca Swiss tripod head products. The point of rotation is above the movements achieving leveling on the horizontal and he vertical axis with little or no change in the composition framing. One day of precision machining is required to make the parts for a single C1 Cube head plus the time for finishing and assembly. A true marvel of engineering and manufacture.

clicPan® is an entirely mechanical upper panning base, fitted just below the quick release and above the tripod head, which offers precise angular rotation in a step-by-step mode. The desired angular steps are set using a rotating ring offering 10 different rotational steps of 40°, 30°, 24°, 20°, 15°, 12°, 10°, 7.5°, and 6° - plus an off position for 360 degrees of free movement. When panning the camera, clicPan® stops with an audible click at each angular step. This physical and audible feedback eases rapid operation.

  • Type: Geared tripod head
  • Weight: 1120g (2.47lb)
  • Weight Capacity: 40kg (88lb)
  • Base Diameter: 60mm (2.36")
  • Base Mount: 3/8" - 16 threaded socket
  • Dimensions: 110,,x110mmx113mm (4.33"x4.33"x4.45")
  • Panning at Base: Yes, 360° lockable free movement
  • Panning at top: Yes, clicPan® with free or adjustable step by step angular rotation, lockable, with precision scale graduated in degrees

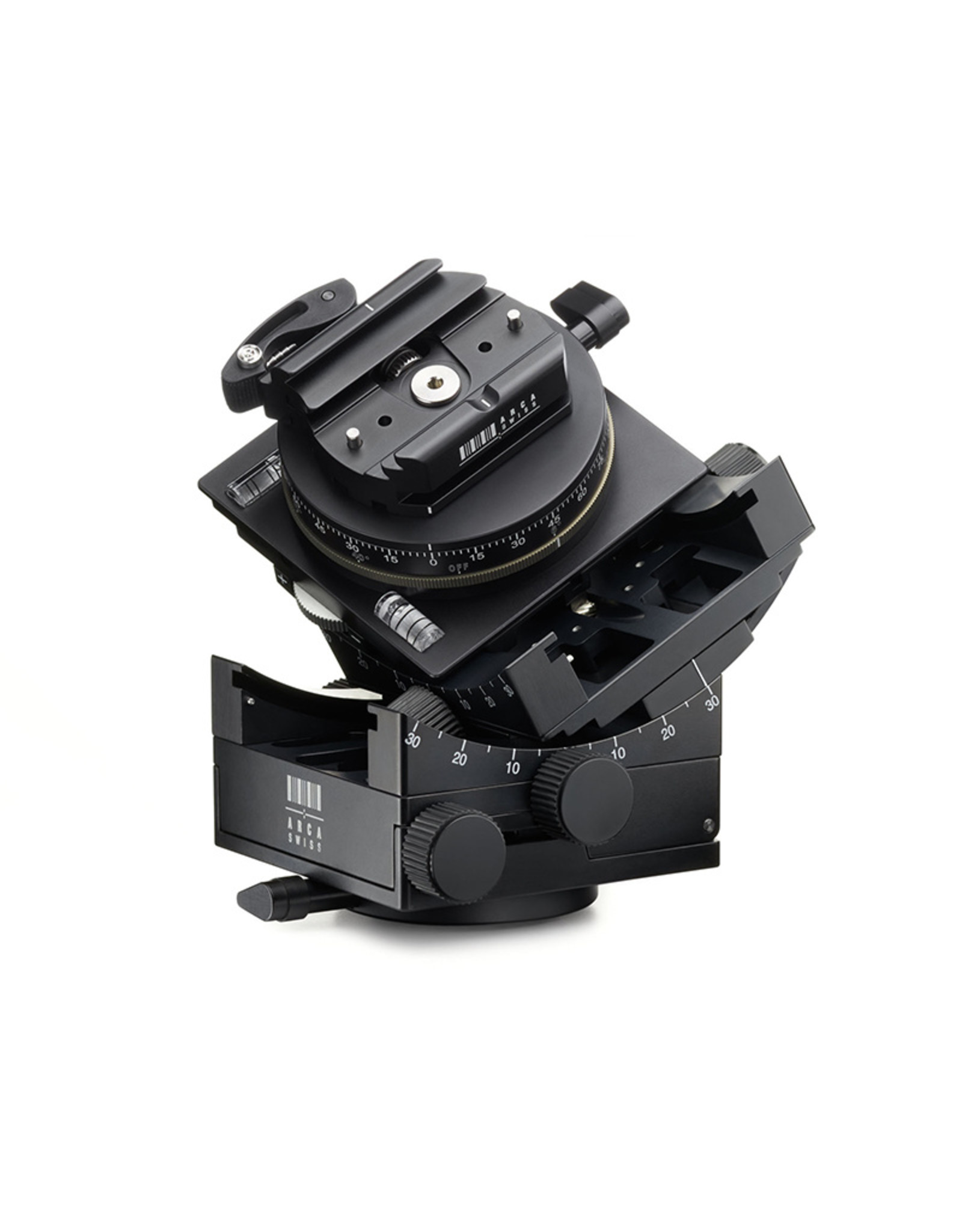

  • Tilt Range X and Y axes: +/- 30° self-locking geared controls – (8° per knob rotation)
  • Base tilt: 0-60° - manual

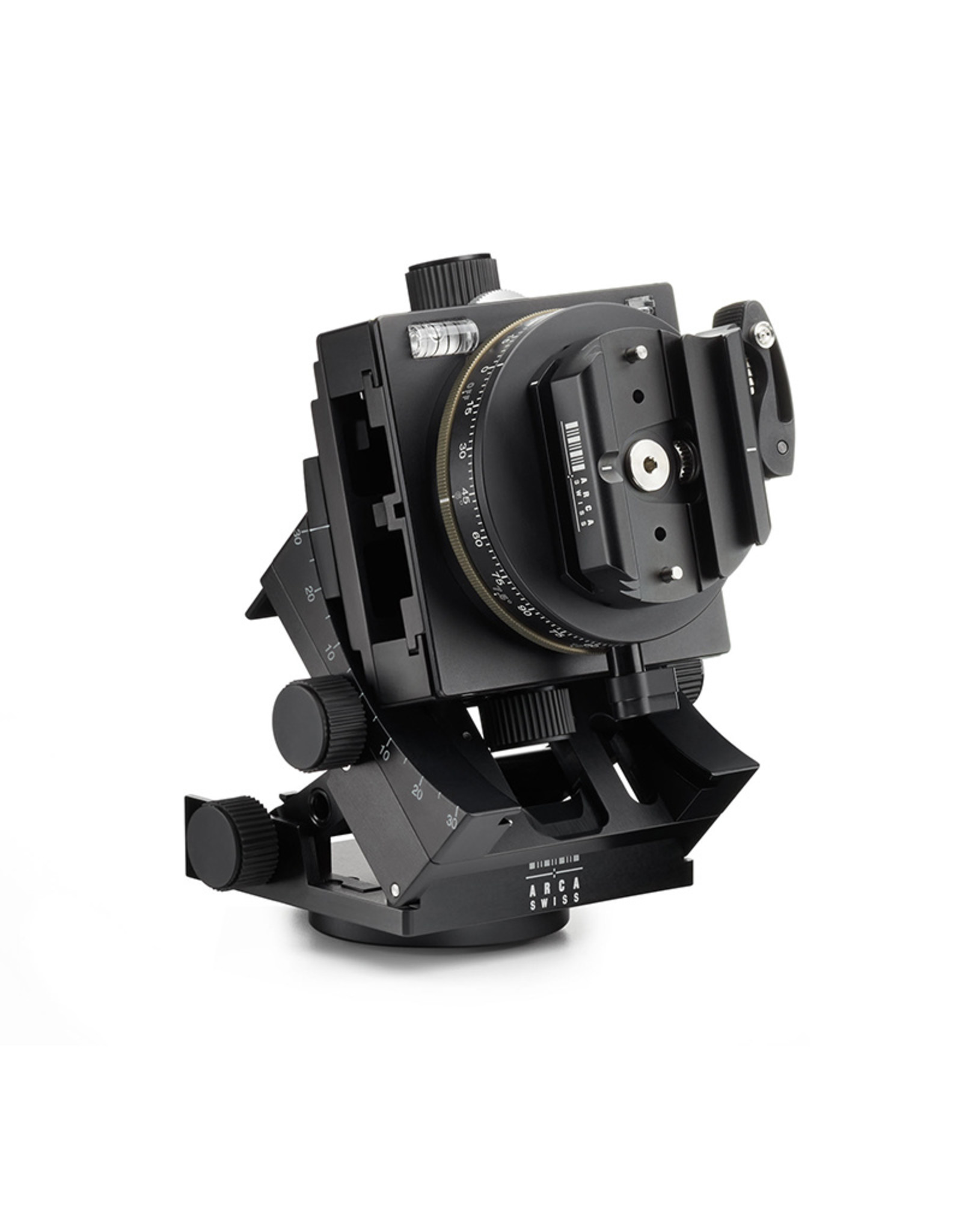

  • Base manual tilt + top geared tilt: > 90°
  • Friction control: Yes, for X and Y axes
  • Level control: 2 tubular bubble levels for X and Y axes

Ideal for view cameras, field cameras, technical cameras, 4x5 to 11x14 cameras, DSLR's and medium format. Essential where composition framing needs to be maintained when levelling adjustment are required like landscape, architecture, and anywhere precision framing is required. Unique design allows for 90 degree positioning of camera relative to tripod for copy work and macro applications.

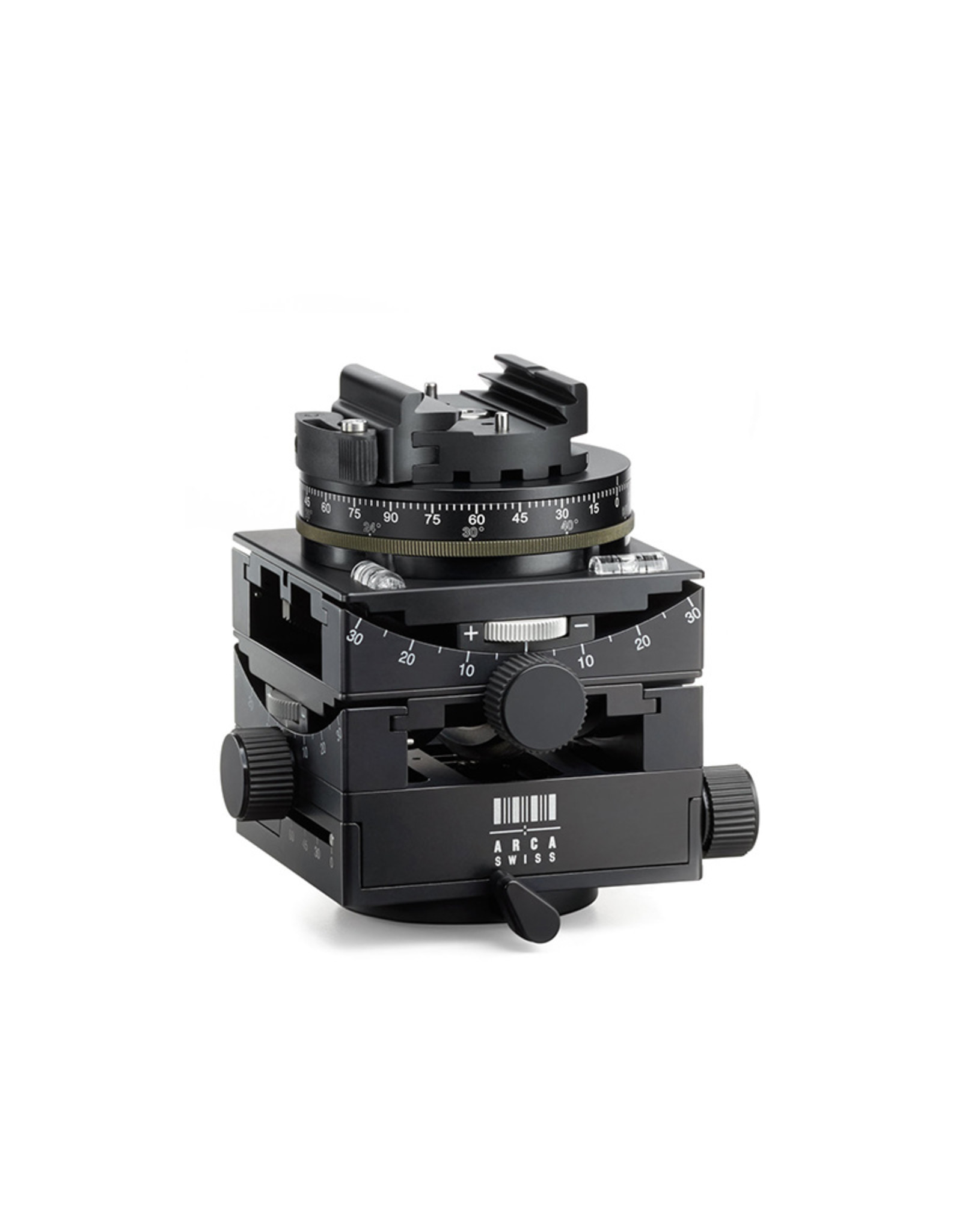

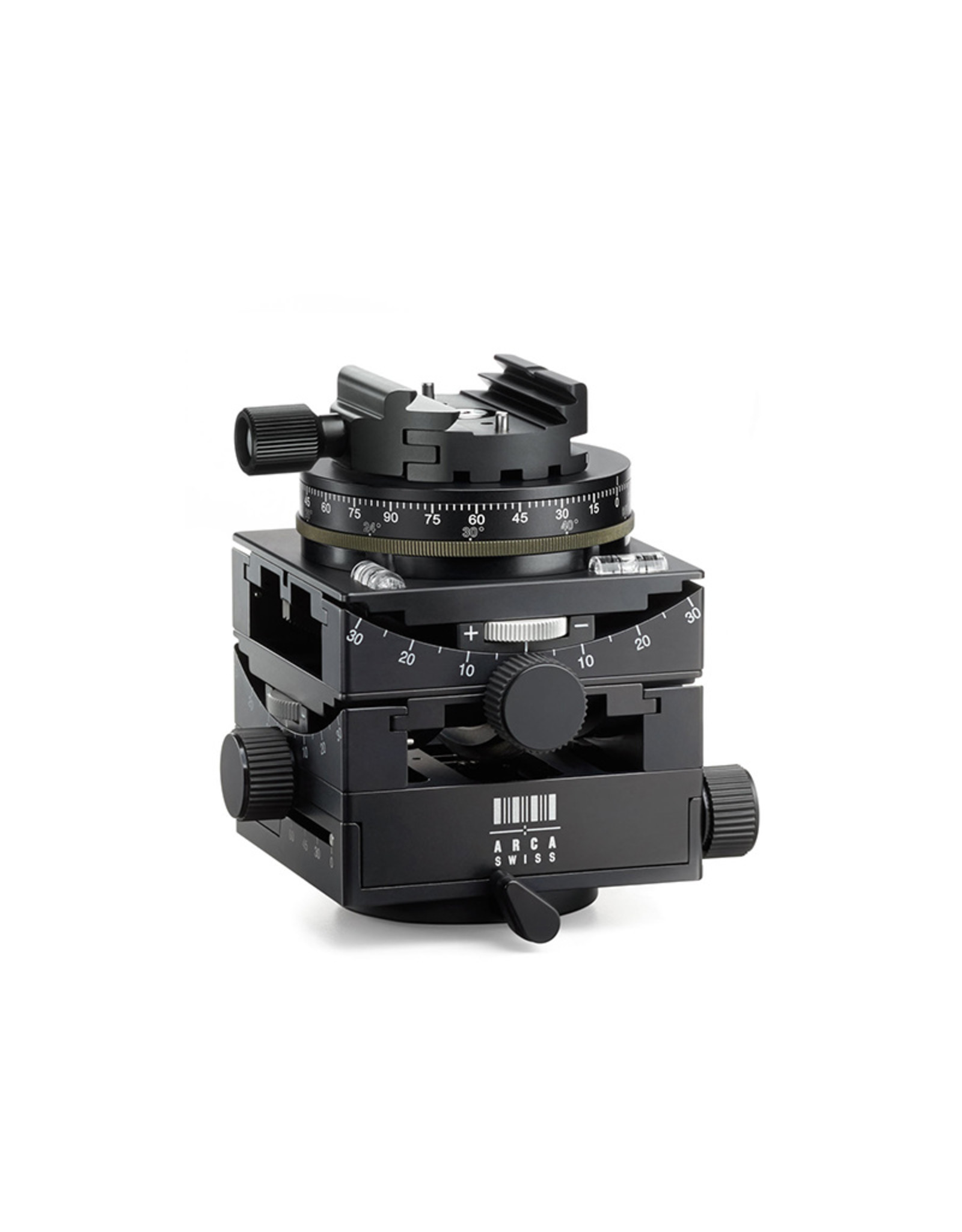

Like all tripod heads from ARCA-SWISS, The C1 Cube is available with a choice of quick release: monoball Fix, Classic and flipLock.

ARCA-SWISS equips Classic and flipLock quick releases with dual channel dovetails. Classic camera plates mount in the upper dovetail, while
Monoball Fix and ARCA-SWISS camera monorails mount in the lower channel of the quick release.
Monoball Fix quick releases are a single channel design and only compatible with monoball Fix camera plates and accessories, or with ARCA-SWISS camera monorail.
